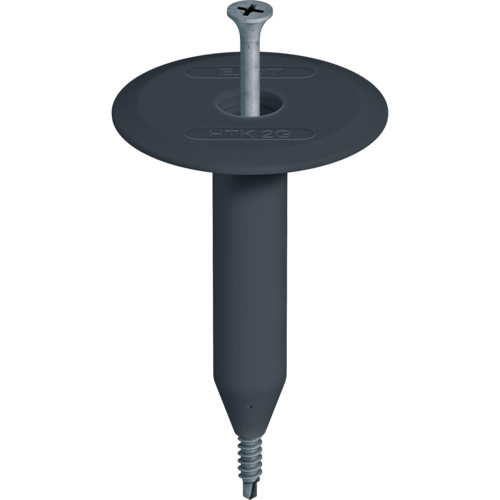

EJOT® HTK-2G-TKR loose, pre-assembled
Especificaciones
-
Aplicaciones
- To fix roofing membranes and insulating material to substructures made of sheet steel ≥ 0.70 mm ≤ 1.5 mm, timber or wood-based material
- For new buildings
- For the installation with ECOSET HTK installation tool up to 280 mm total panel thickness
- For special requirements of resistance to imposed loads
- To reduce thermal bridges
-
Características
- Stress plate: high-grade plastic material
- DABO® screw TKR = case-hardened steel, Climadur*-coated > Telescope design for resistance to imposed loads
- Combinations for total panel thicknesses up to 605 mm possible
- Processing in an upright position possible with the bit extension with spring pin or with the ECOSET HTK installation tool
-
Note
Upon request also available with VHT-R and VHT-E
*Climadur
High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Profundidad efectiva anclaje mm | Espesor del aislamiento mm | Longitud tornillo mm | Unidades |
|---|---|---|---|---|---|
| HTK-2G-TKR-100-55/70-loose, pre-assembled | 3705507024 | 55.0 | 100.0 | 70.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-120-95/50-loose, pre-assembled | 3709505024 | 95.0 | 120.0 | 50.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-140-95/70-loose, pre-assembled | 3709507024 | 95.0 | 140.0 | 70.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-160-115/70-loose, pre-assembled | 3711507024 | 115.0 | 160.0 | 70.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-180-145/60-loose, pre-assembled | 3714506024 | 145.0 | 180.0 | 60.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-200-145/80-loose, pre-assembled | 3714508024 | 145.0 | 200.0 | 80.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-220-145/100-loose, pre-assembled | 3714510024 | 145.0 | 220.0 | 100.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-240-145/120-loose, pre-assembled | 3714512024 | 145.0 | 240.0 | 120.0 | |
Datos técnicos
|
|||||
| HTK-2G-TKR-260-145/140-loose, pre-assembled | 3714514024 | 145.0 | 260.0 | 140.0 | |
Datos técnicos
|
|||||
| HTK 2G-TKR-280-145/160-loose, pre-assembled | 3714516024 | 145.0 | 280.0 | 160.0 | |
Datos técnicos
|
|||||
| HTK 2G-TKR-300-145/180-loose, pre-assembled | 3714518024 | 145.0 | 300.0 | 180.0 | |
Datos técnicos
|
|||||
| HTK 2G-TKR-320-145/200-loose, pre-assembled | 3714520024 | 145.0 | 320.0 | 200.0 | |
Datos técnicos
|
|||||
| HTK 2G-TKR-340-145/220-loose, pre-assembled | 3714522024 | 145.0 | 340.0 | 220.0 | |
Datos técnicos
|
