EPPsys RSD

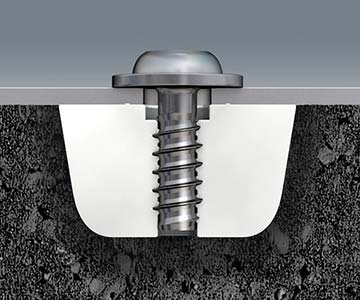

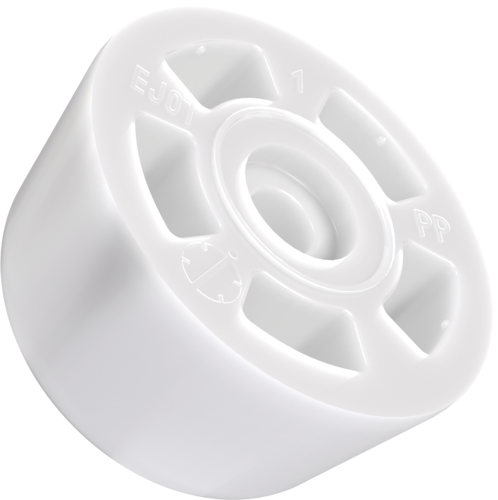

El EJOT^® EPPsys RSD ("cúpula de soldadura por fricción") es un elemento de fijación de gran capacidad para espumas de EPP y elementos de panal de PP. Esta innovadora fijación se aplica directamente en la espuma de EPP mediante el proceso de soldadura por fricción y queda fijada de forma duradera y fiable al material fundido. Finalmente, el EPPsys RSD permite realizar un atornillado directo sencillo y seguro con el tornillo EJOT EVO PT^® .

If the EJOT^® EPPsys RSD and its assembly after foaming are not suitable for you, it is also possible to create a joint with our Delta Tubus elements. These parts are inserted into the mould before the foaming process and subsequently surrounded by the EPP or similar foams. Thus, after opening the mould, you get a finished component that already contains the joining elements. EVO PT^® screws 40 or 50 are used for fastening in this case.

The EPP insert is the easiest solution for creating a screw-in option in foams. This element can be pressed into pre-drilled components thanks to its special ribbed geometry. No special assembly technology is required here – all that is needed is to ensure that the foam component has a pre-hole. This can be drilled or already created during the foaming process. The EPP insert is available with a metric M5 thread. Further hole geometries upon request.
